Amine gas treating

Eliminating severe corrosion damages with Ceramium® CH

Repair spot
Repair spot
Repair spot
Repair spot
Repair spot

Although the concerned substrate is made out of a special corrosion resistant high-grade steel type, a gas washer located in a refinery showed considerable corrosion damages in several areas due to severe chemical and thermal exposures.


Regenerator and reboiler of an amine gas treating plant for the natural gas purification
Type of damages Severe corrosion damages; in places corrosion up to 4 mm (here reduction of the original wall thickness of about 50%)
Damaged material High-grade steel SS 316L
Working temperature 140 °C
Working pressure 3 bar
Agents / Chemicals Amines (MDEA Methyl diethanolamine), degraded amines, hydrogen sulphide H2S, carbon dioxide CO2, heat stable salts, formic acid CH2O2, oxalic acid C2H2O4, acetic acid C2H4O2, sulphuric acid H2SO4, dioxygen O2, acetate

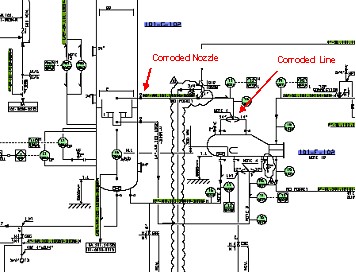

Technical drawing

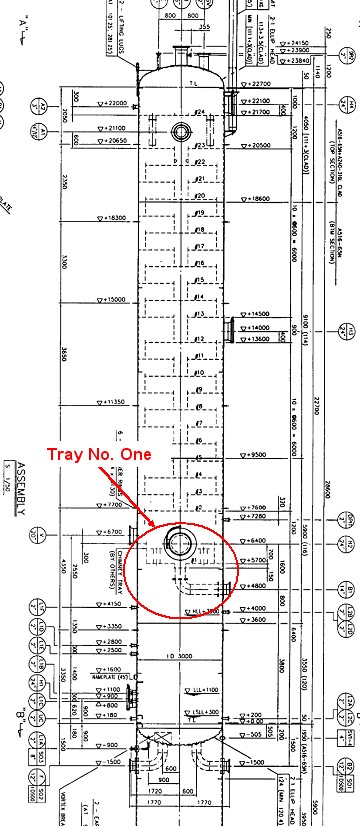

Technical drawing

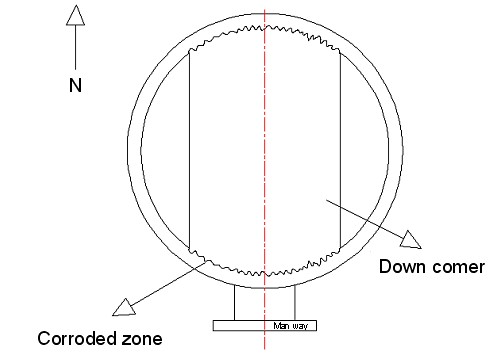

Technical drawing

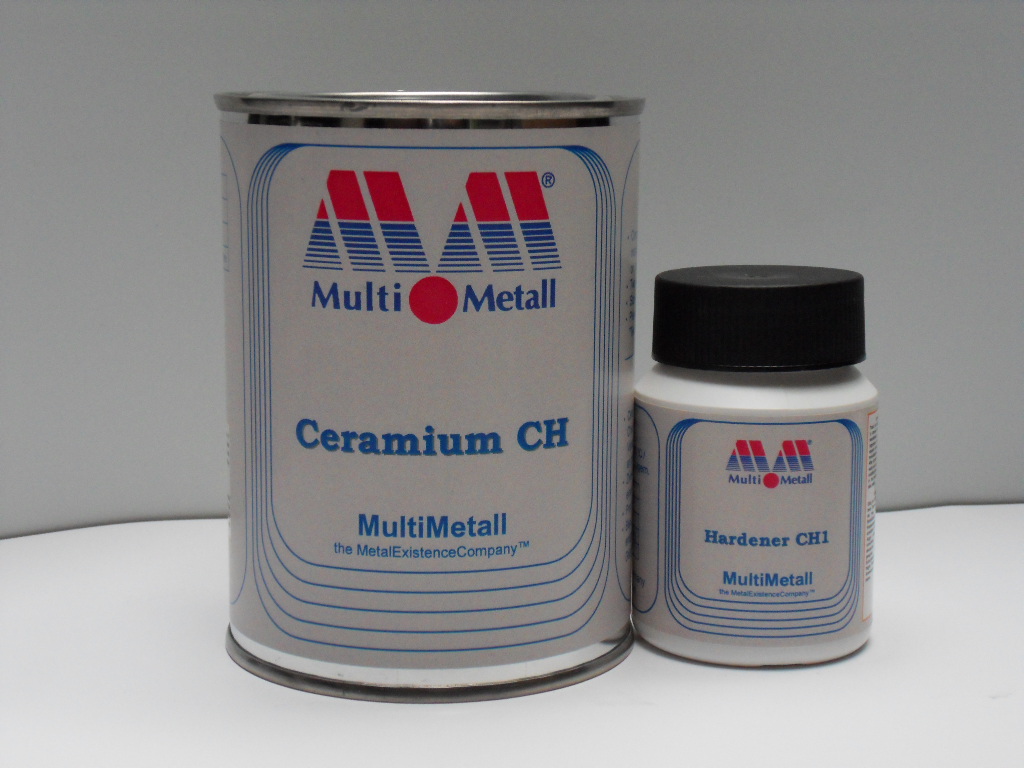

Tin of Ceramium CH with Hardener

Please also visit our website at

Go on to website

The aim of the gas washer is to process the streaming sour natural gas by means of supply of MDEA in certain concentrations of sulphur hydrogen and carbon dioxide for the further transportation according to the pipeline standards (keyword "sweetening"). Corrosion caused by the combination of high working temperatures, pressure and the reaction of different agents and chemicals is not unusual at such constructions. Due to the long-term demands at various areas of the plant within scheduled inspections a high intensity of the corrosion damages was detected and finally it was necessary to initiate a repair procedure.

A repair by current welding methods is problematic due to the error rate at the demanding performing welding works and the necessary accompanying heat treatment after the welding (keyword stress crack, intergranulare corrosion, PWHT post weld heat treatment). Besides the damaged areas are rather huge (see also standard NACE RP0472-2000 & API Recommended Practice 582, Welding Guidelines for the Chemical, Oil and gas Industries).

For the first time trial coatings of approx. 40 kg Ceramium CH and Hardener CH1 were carried out in some damaged areas of the plant in an average layer strength of 3 mm.

A visual inspection of the coated areas approx. half a year later was positive and it was decided to order bigger quantities of Ceramium CH / Hardener CH1 for the coating of other damaged areas of the plant.

Mai/June 2008
Inspection; detection of the defects; decision for a first use of coating material made by MultiMetall
October 2008 Trial coatings with Ceramium CH
May 2009 Inspection; survey of trial coatings; good result
June 2009 Shipment/Order about additional bigger quantities of Ceramium CH / Hardener CH1 for the coating of further damaged plant areas
May 2011 Condition of the coated surfaces is still rated as good

The research of MultiMetall has succeeded in developing with Ceramium CH a PolymerCeramic which possesses a very high chemical permanence. Only with the suitable know-how the production of such a material is possible.
